Why DIN Rail SMPS Are Ideal for Compact Panels – With Mean Well Examples

Introduction

DIN Rail-mounted SMPS are becoming the industry standard for compact, organized, and modular control panels. In this post, we’ll explain the benefits of DIN rail power supplies and highlight top Mean Well series that support this format.

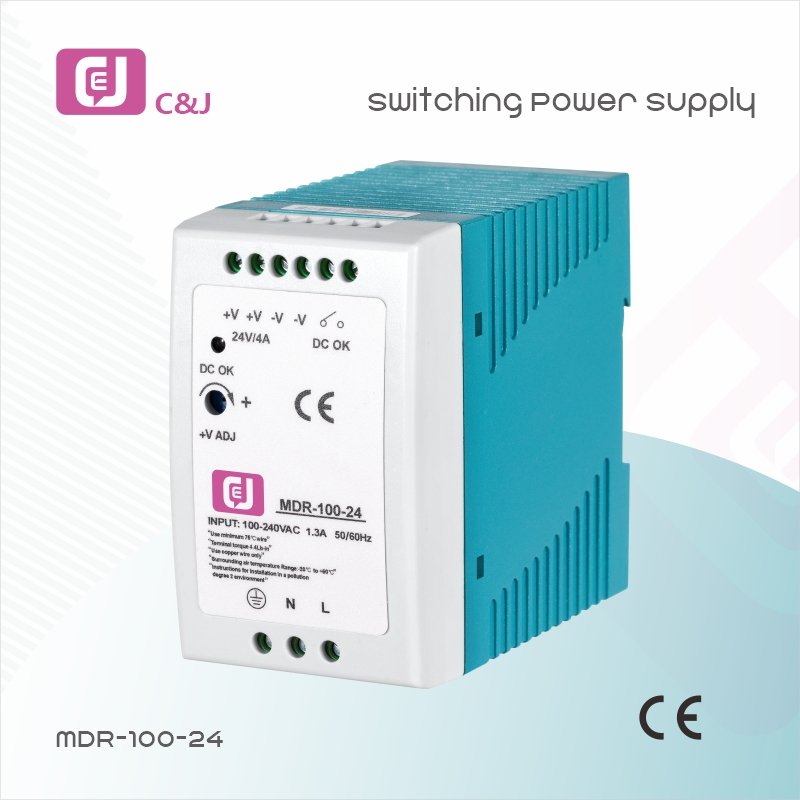

What is a DIN Rail SMPS?

A DIN Rail SMPS is a switched-mode power supply designed to be clipped onto standard DIN rails (TS-35) inside electrical panels. They help simplify installation and allow better cable routing in control cabinets.

Advantages of DIN Rail Power Supplies

– Compact and modular design
– Tool-less mounting and replacement
– Better heat dissipation in vertical layout
– Cleaner wiring and cable management

Top Mean Well DIN Rail Series

– **TDR Series**: 3-phase input, slim width, 240W–960W, great for high-load panels
– **WDR Series**: Wide AC input (180–550VAC), single-phase, ideal for unstable power
– **NDR Series**: Cost-effective alternative for standard 230V AC input systems
– **HDR Series**: Ultra-slim, suitable for home automation, small PLC systems

When to Choose DIN Rail SMPS Over Enclosed Type?

– If you’re building a panel with multiple DIN-mounted components (PLCs, relays, timers)
– When panel depth is limited and vertical installation is preferred
– If you need hot-swap or quick-replace capabilities

Conclusion

DIN Rail SMPS units are the future of compact panel design. Choose Mean Well’s TDR, WDR, or NDR series for industrial reliability and easy panel integration.
